Title Block becomes tiled when printing from a Layout Tab

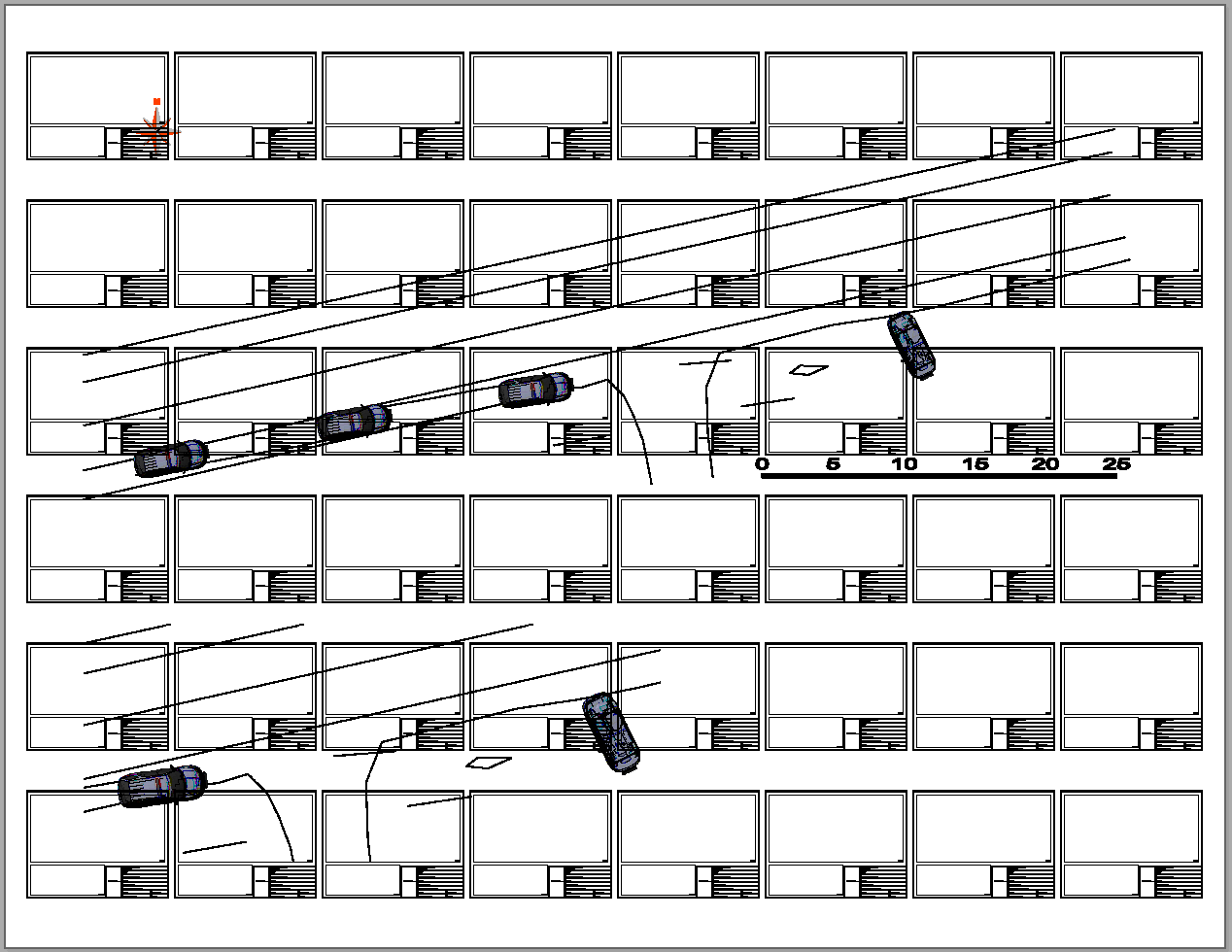

When printing in MicroSurveyCAD users have reported experiencing their title blocks becoming tiled across the page, as shown in the screenshot below. This appears to only occur when the Visual Style is set to something other than 2D Wireframe. Switching your viewport(s) back to 2D Wireframe should resolve the issue. (Activate your viewport by double clicking inside of it, then go to View Menu > Visual Styles > 2D Wireframe).

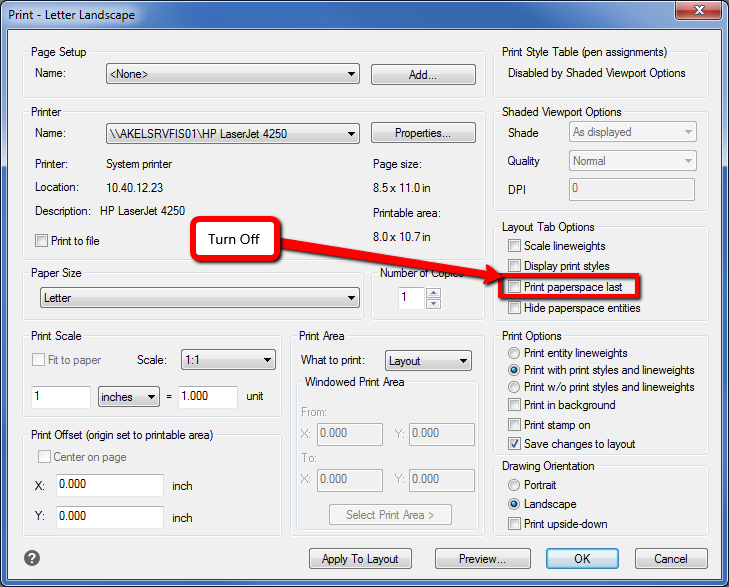

If you must print in a Realistic or Conceptual view (ex. If you have 3D Object or Models inserted into your drawing). Open the Print window > Layout Tab Options> Uncheck Print Paperspace Last.

Problem - Title Block becomes tiled when printing from a layout tab

Solution - Turn off Print Paperspace Last option in the print menu
